Brand:

LD SYSTEM SUBWOOFER ICOA15A BT(LD-ICOASUB15A-BT)

949.00$

  • Extensive and smart accessories for installation and transport are optionally available.

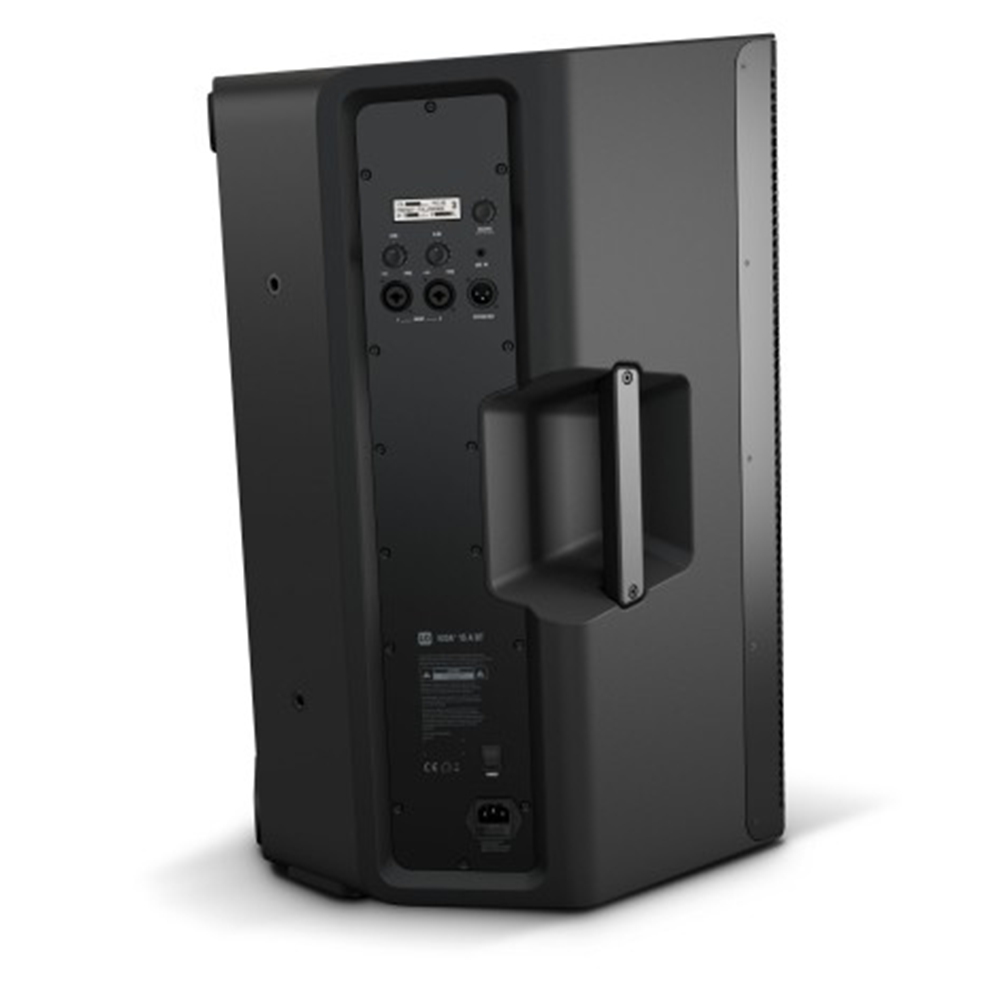

  • 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

Customer service:

Online & offline secure payment:

digital payment small logo
8395 People watching this product now!
SKU: LD-ICOASUB15A-BT Category: Tags: , Brand:

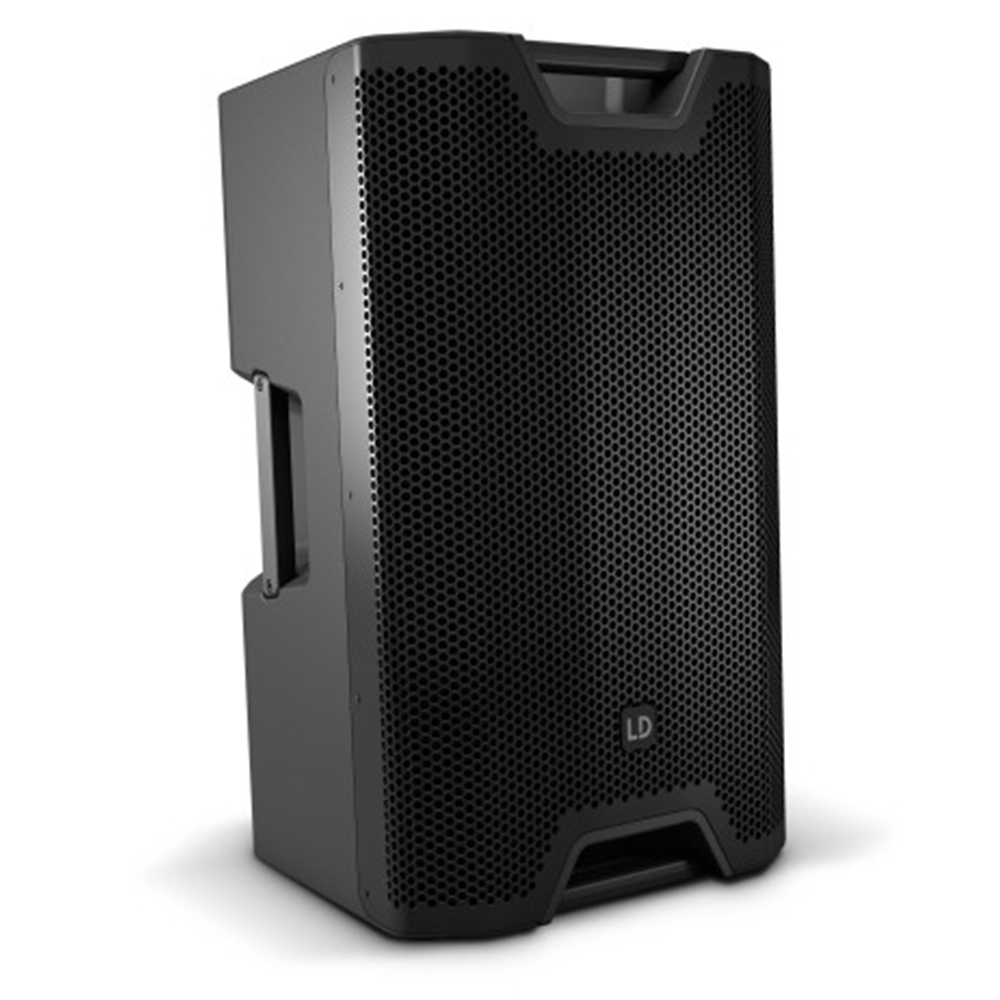

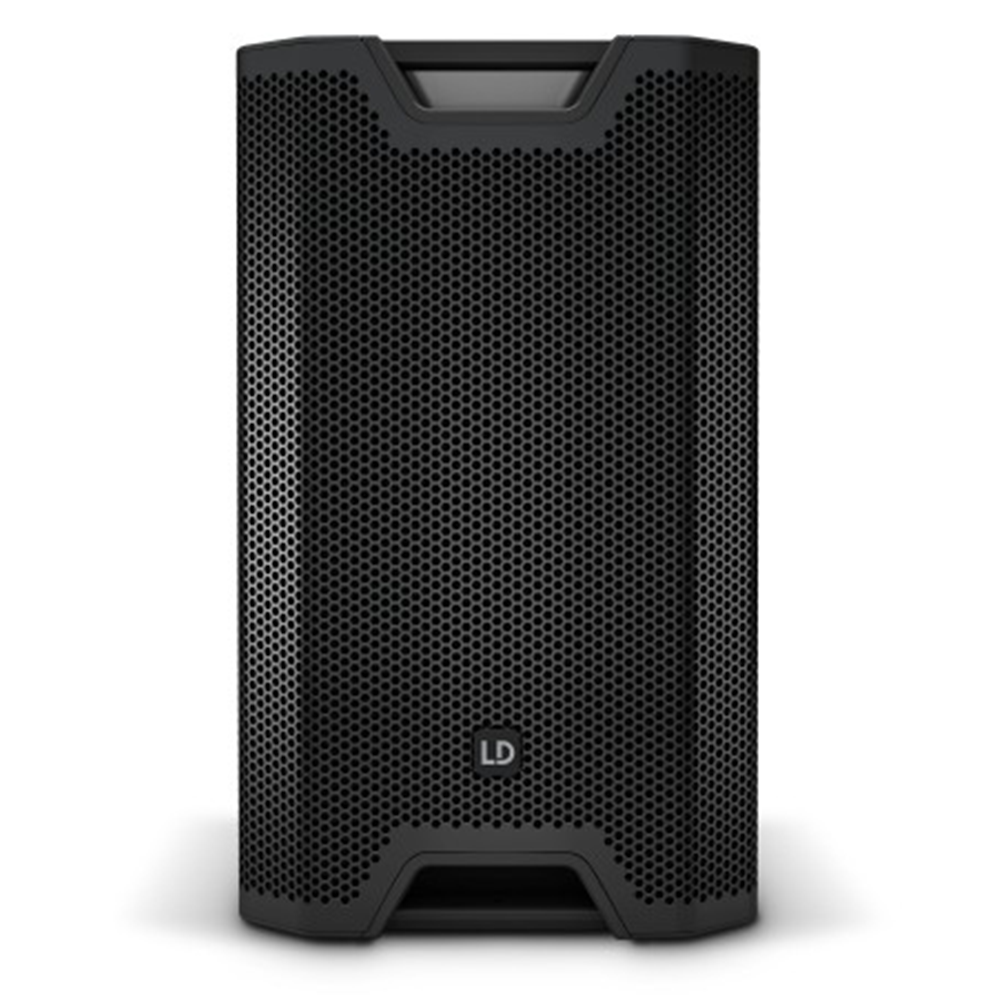

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A BT the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it’s excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 1200 W peak performance.

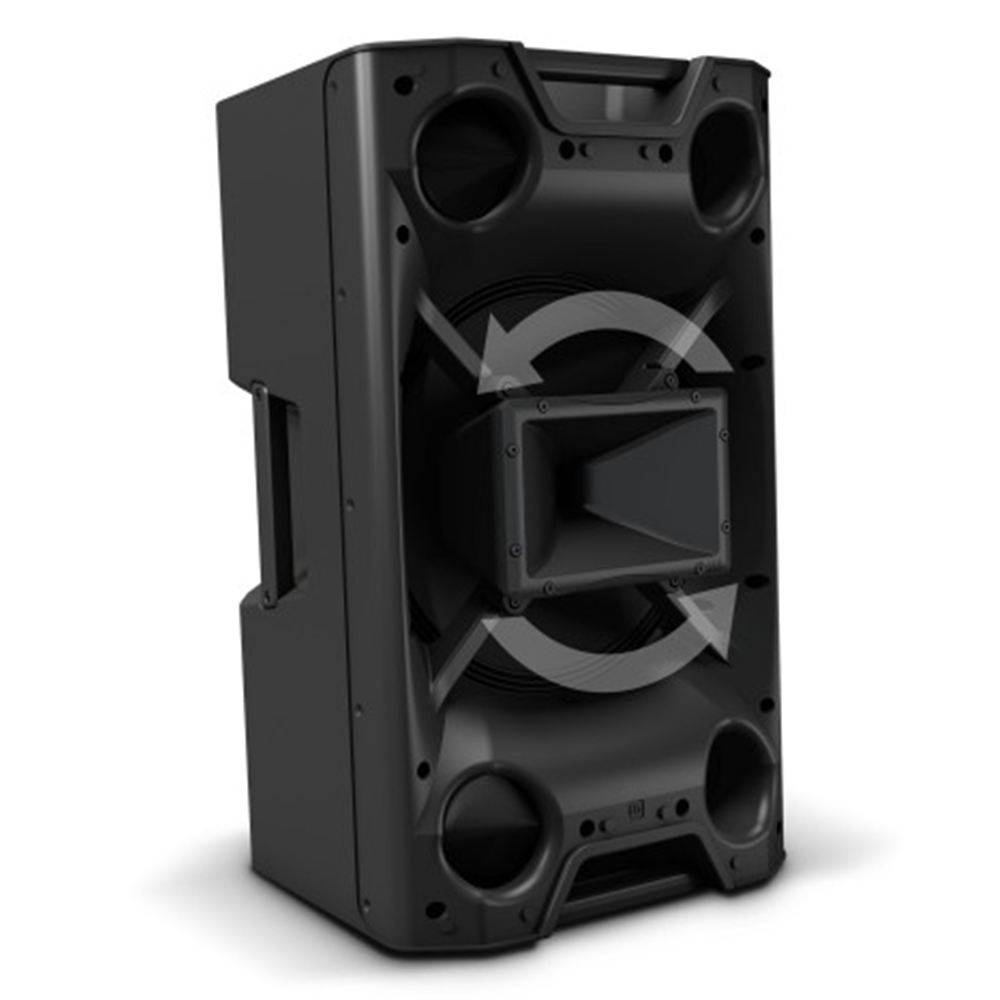

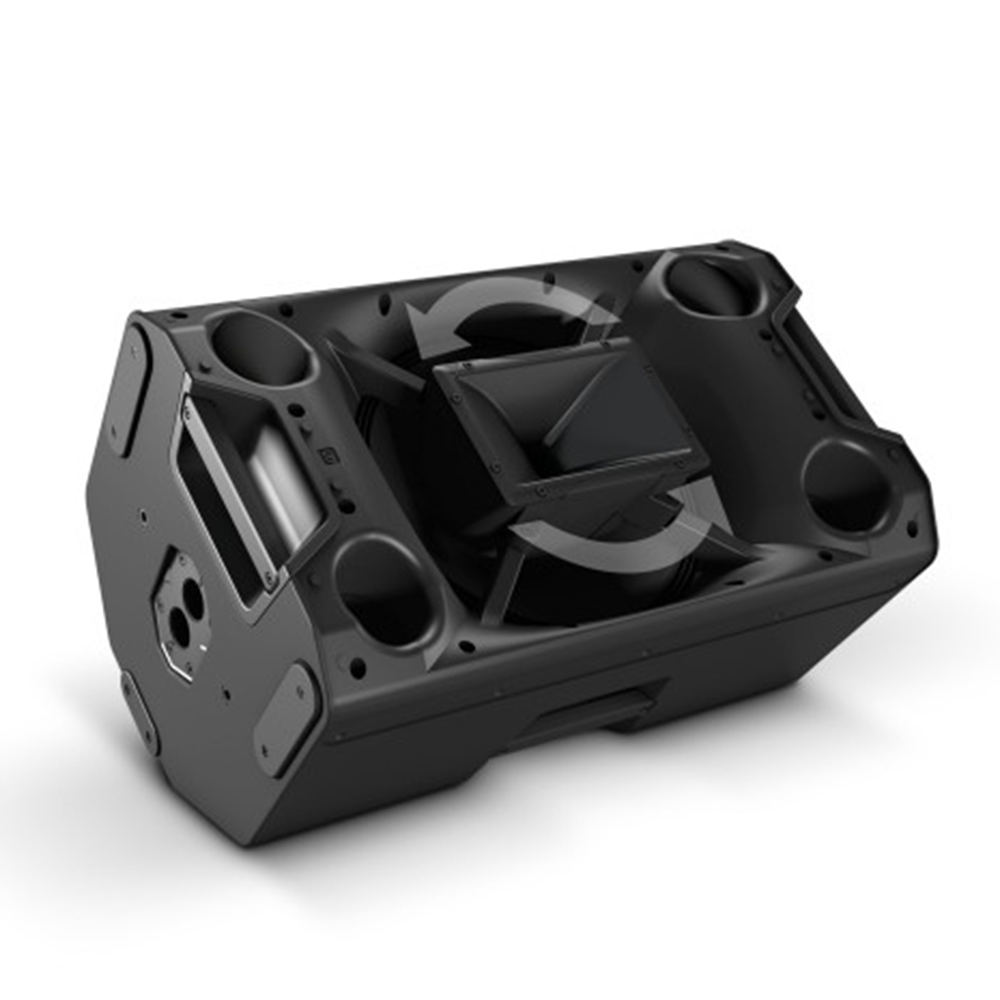

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 15 A BT by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this aktive 15″ loudspeaker exceptionally flexible.

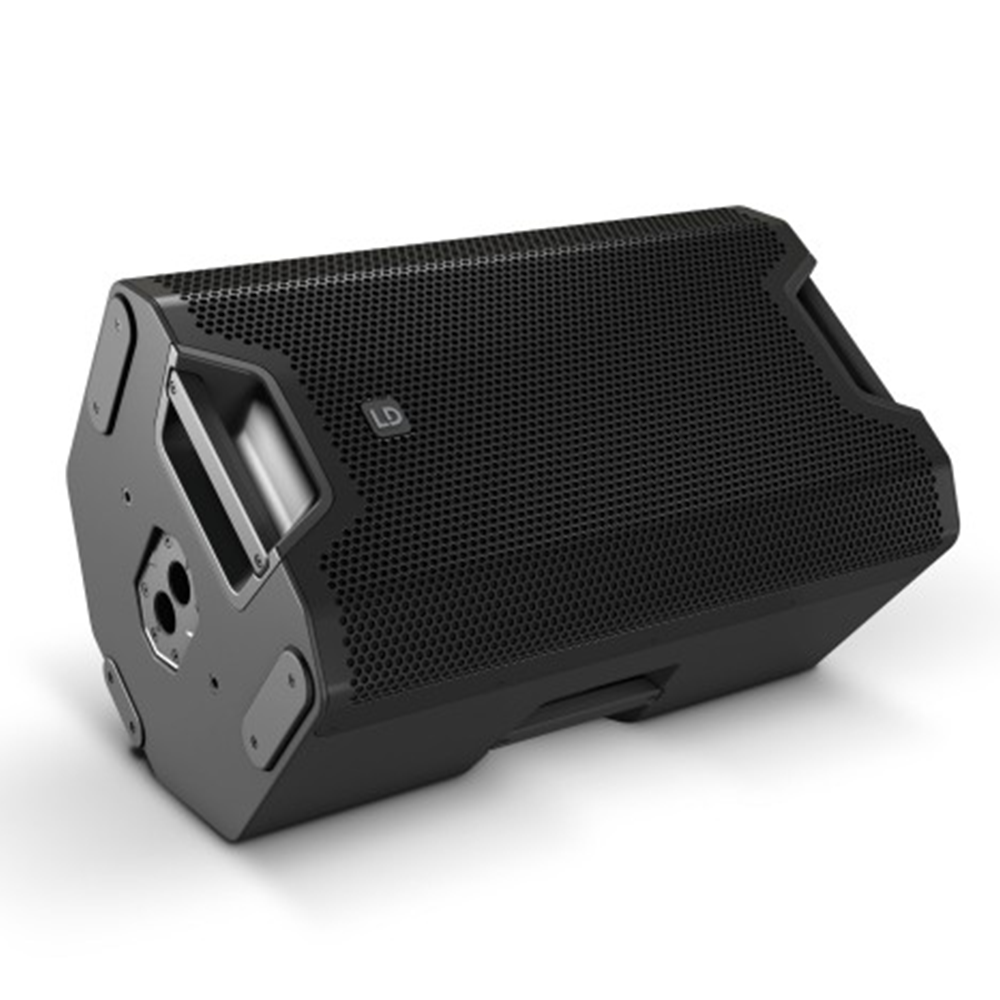

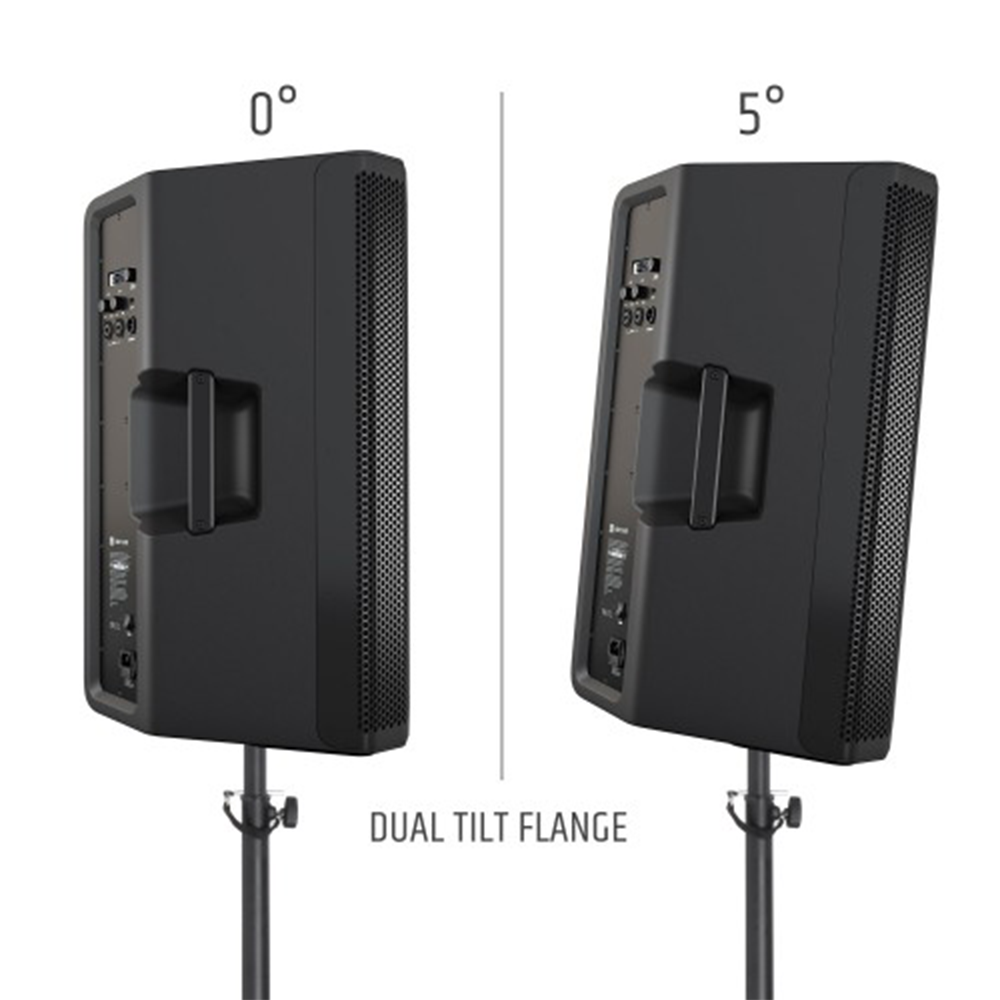

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A BT is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

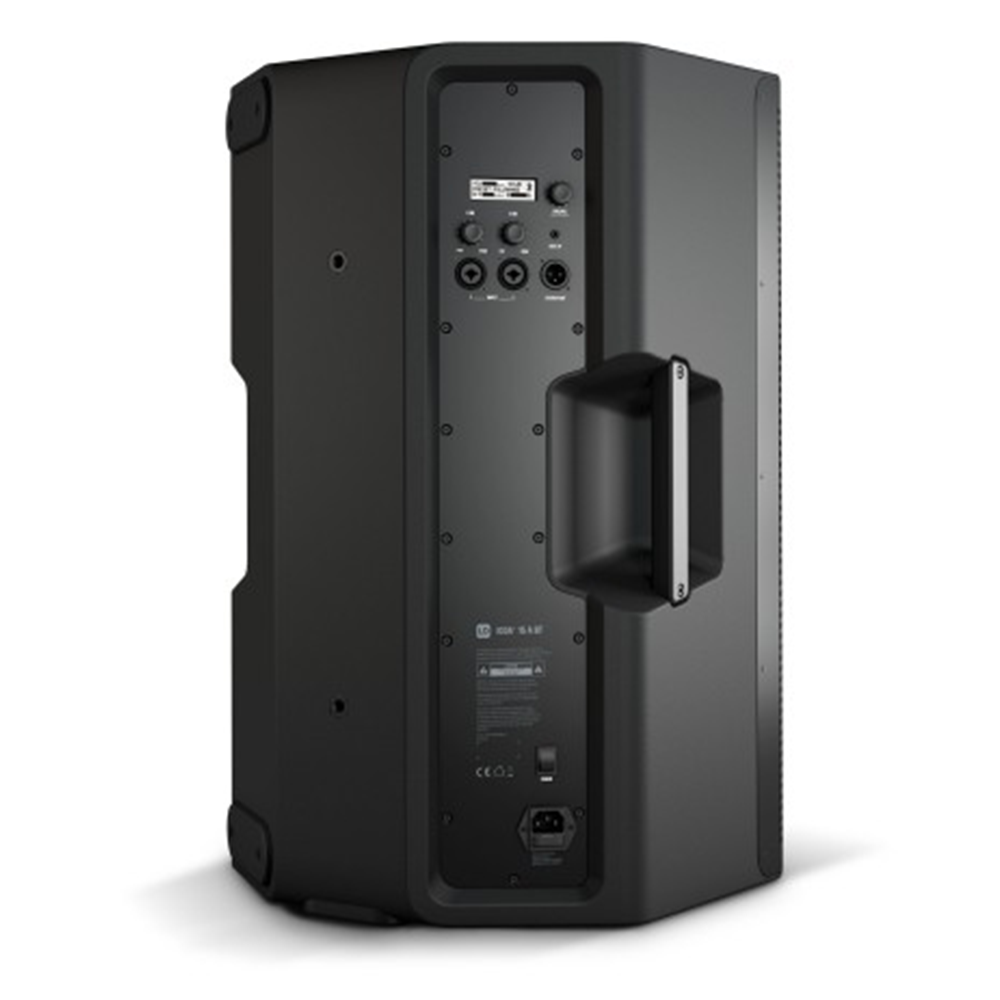

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. The BT version offers Bluetooth® streaming and the wireless connection of playback devices – ideal for playing content from a phone or tablet.
  • Product type                                          PA loudspeaker
  • Type                                                        Powered
  • Bluetooth Audio Decoder                  Bluetooth 4.0
  • Low/mid Woofer dimensions          15 "
  • Woofer dimensions (mm)                 381 mm
  • Woofer magnet                                    Ferrite
  • Woofer brand                                       Custom-made
  • Horn                                                      BEM optimized CD Horn
  • HF driver dimensions                        1 "
  • HF driver dimention (mm)               25.4 mm
  • HF driver magnet                                Ferrite
  • HF driver brand                                  Custom-made
  • HF driver voice coil                            1.4 "
  • HF driver voice coil                           35 mm
  • Amplifier                                             Class D
  • Dispersion (H x V)                            90° x 50°
  • System Power (RMS)                       300 W
  • Peak power                                        1200 W
  • Frequency response                         48 Hz - 20000 Hz
  • Crossover frequency kHz                2 kHz
  • Max. SPL (Peak)                               128 dB
  • Protection circuits                            Multiband limiter, over voltage, over-current, thermal overload

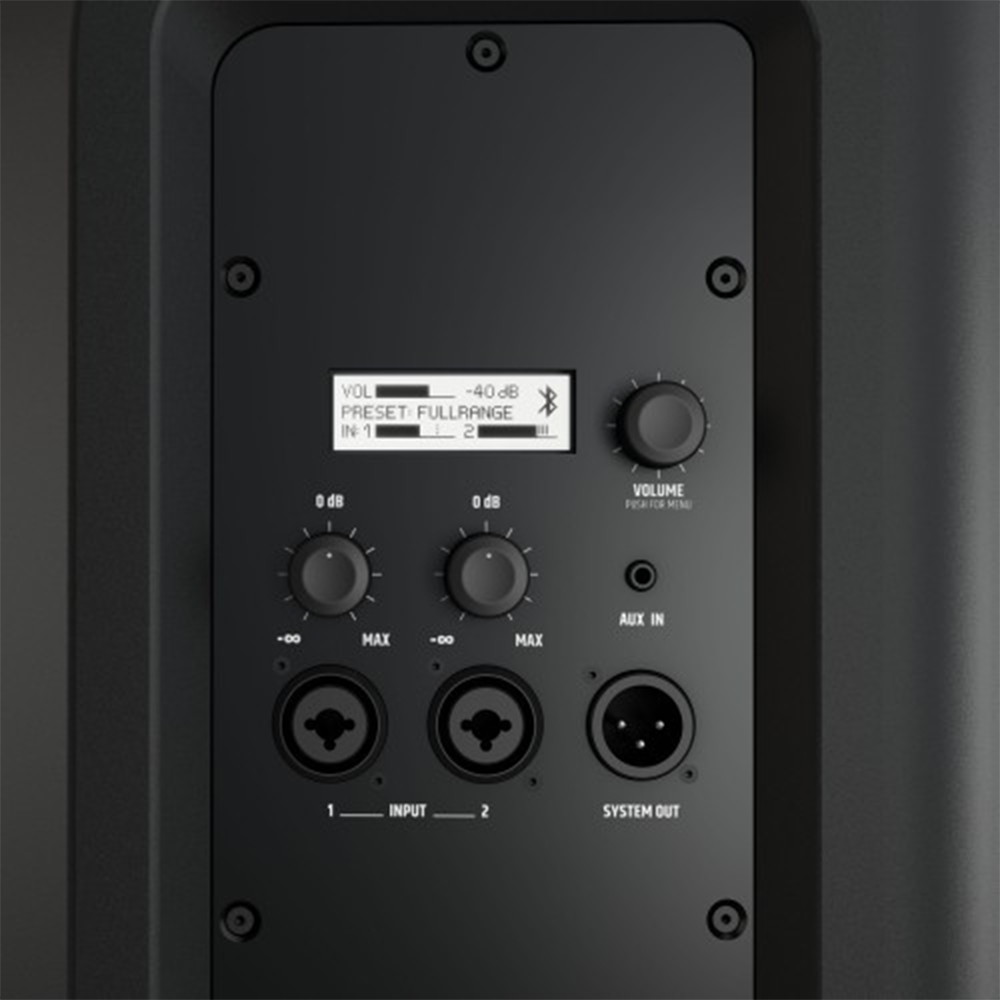

  • Controls                                              2 x gain, On / off switch, Rotary/push encoder
  • Indicators                                           LC display
  • Mic/ line inputs                                 2
  • Mic-/ Line Input Connectors         6.3 mm jack Combination sockets (symmetrical), XLR
  • Line inputs                                         1
  • Line input connectors                     3.5 mm TRS
  • Line outputs                                     1
  • Line output connectors                  XLR
  • Operating voltage                           SMPS
  • Power consumption                       150 W
  • Ambient temperature (in operation)        0 - 40 °C
  • Operating voltage                                         100 V - 240 V AC / 50 - 60 Hz
  • Relative Humidity                                       < 80 %, not condensing
  • Fuse                                                                T4AL 250 V
  • Cabinet material                                          Polypropylene
  • Cabinet construction                                  Bass Reflex

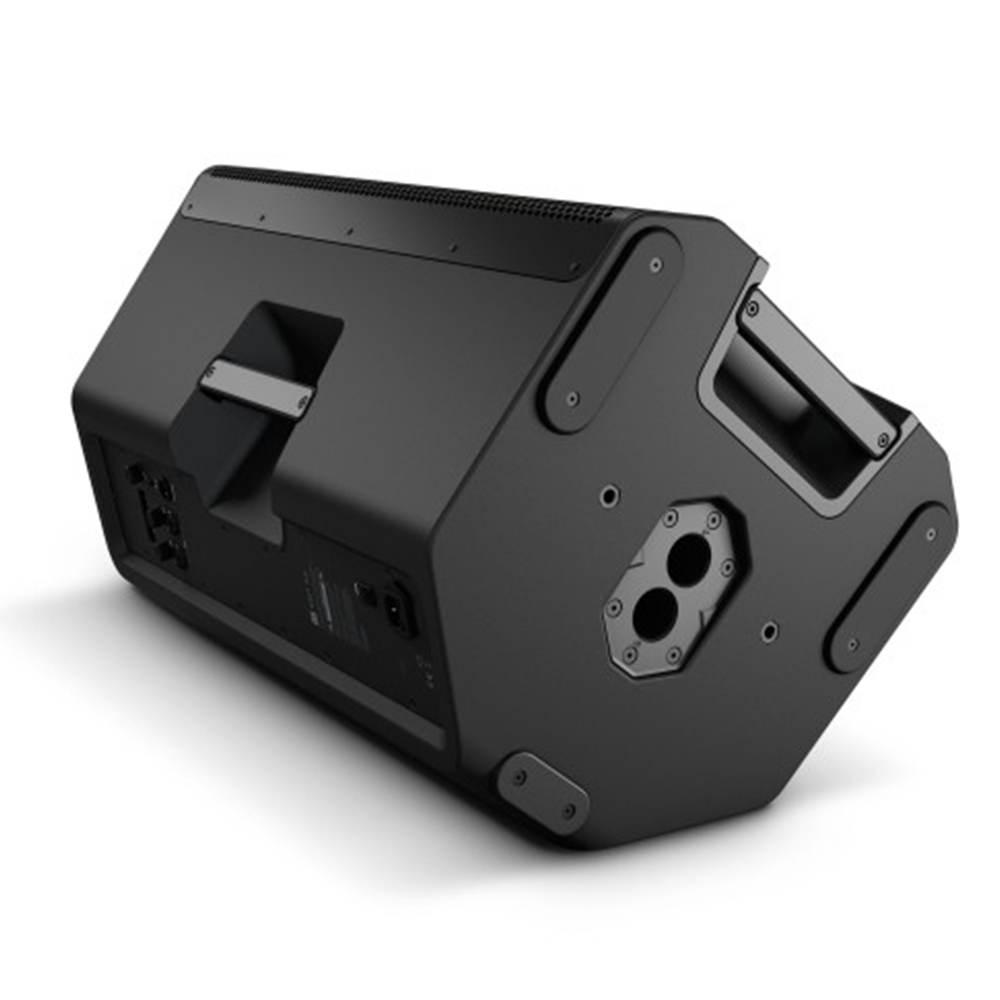

  • Mounting                                                      36mm flange (0°, 5°), 6 x M10 flying points
  • Monitor angle                                              55 °
  • Width                                                            416 mm
  • Height                                                           695 mm
  • Depth                                                            415 mm
  • Features                                                        Bluetooth
  • Weight                                                           24,3 kg
  • Accessories (included)                               Power cord
